Electric motors

HSM series

Motoren: 29

HSM series: An internal rotor with Hall sensor technology. The special features of this series are its high dynamics, excellent controllability and long service life. The motors are maintenance-free as commutation is electronic. A wide range of planetary gearheads in various designs are available for you. Further modifications are possible on request, including various worm gear units.

Gearboxes
Voltage
Engine Speed [min-1]
Rated Current [ADC]
-
Nominal Torque [Nm]
-
Nominal Power [W]
-
Length [mm]
-
Diameter [mm]
-
Name
Rated Speed
Rated Current
Nominal Torque
Nominal Power
Length
Case-Ø

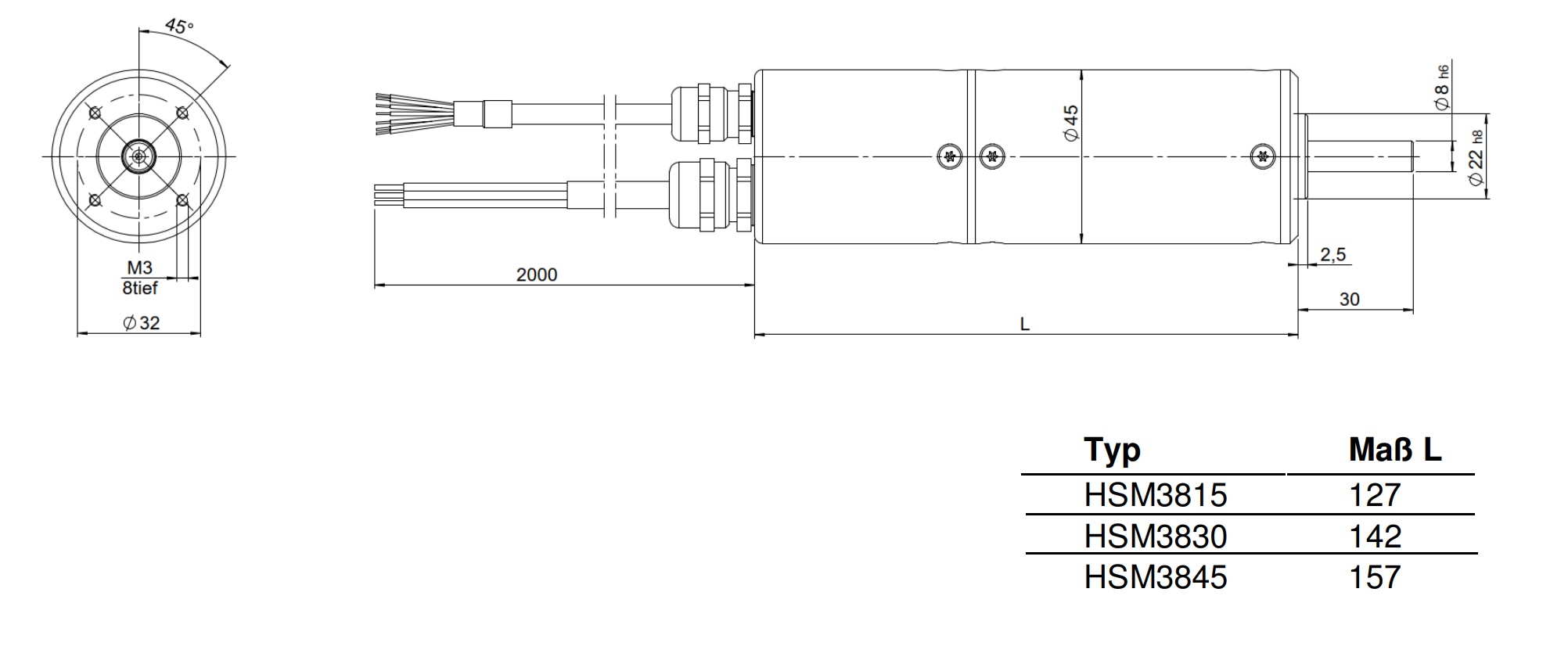

HSM3815-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 0.7 A
Nominal Power 10.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 45.0 mm
Length 127.0 mm
Mechanical Data
Mass Moment Of Inertia 0.00292 · 10-3 kgm2
Nominal Torque 0.029 Nm
Mechanical Time Constant 3.86 ms
Friction Torque 0.01 Nm
Rotor Weight 0.1 kg
FR (Permissible radial shaft load) 110.0
FA (Permissible axial shaft load) 44.0
Electrical Data
Anchor Inductance 0.81 mH
Terminal Resistance 1.89 Ω
Voltage Constant 6.05 V/1000 min -1
Torque Constant 0.0445 Nm/A
Max. Peak Current 2.1 A
Electrical Time Constant 0.43 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Temperature Rise Without Cooling 15.0 K/W

HSM3830-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 1.6 A
Nominal Power 23.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 45.0 mm
Length 142.0 mm
Mechanical Data
Mass Moment Of Inertia 0.00522 · 10-3 kgm2
Nominal Torque 0.07 Nm
Mechanical Time Constant 1.787 ms
Friction Torque 0.02 Nm
Rotor Weight 0.14 kg
FR (Permissible radial shaft load) 110.0
FA (Permissible axial shaft load) 44.0
Electrical Data
Anchor Inductance 0.267 mH
Terminal Resistance 0.7 Ω
Voltage Constant 6.05 V/1000 min -1
Torque Constant 0.057 Nm/A
Max. Peak Current 4.8 A
Electrical Time Constant 0.31 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Temperature Rise Without Cooling 6.4 K/W

HSM3830 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 1.9 A
Nominal Power 30.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 45.0 mm
Length 142.0 mm
Mechanical Data
Mass Moment Of Inertia 0.00522 · 10-3 kgm2
Nominal Torque 0.068 Nm
Mechanical Time Constant 2.196 ms
Friction Torque 0.015 Nm
Rotor Weight 0.14 kg
FR (Permissible radial shaft load) 110.0
FA (Permissible axial shaft load) 44.0
Electrical Data
Anchor Inductance 0.168 mH
Terminal Resistance 0.553 Ω
Voltage Constant 4.789 V/1000 min -1
Torque Constant 0.045 Nm/A
Max. Peak Current 5.7 A
Electrical Time Constant 0.304 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Temperature Rise Without Cooling 6.7 K/W

HSM3845-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 2.8 A
Nominal Power 44.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 45.0 mm
Length 157.0 mm
Mechanical Data
Mass Moment Of Inertia 0.00752 · 10-3 kgm2
Nominal Torque 0.14 Nm
Mechanical Time Constant 1.332 ms
Friction Torque 0.02 Nm
Rotor Weight 0.18 kg
FR (Permissible radial shaft load) 110.0
FA (Permissible axial shaft load) 44.0
Electrical Data
Anchor Inductance 0.242 mH
Terminal Resistance 0.38 Ω
Voltage Constant 5.67 V/1000 min -1
Torque Constant 0.058 Nm/A
Max. Peak Current 8.4 A
Electrical Time Constant 0.56 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Temperature Rise Without Cooling 4.53 K/W

HSM3845 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 3.0 A
Nominal Power 55.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 45.0 mm
Length 157.0 mm
Mechanical Data
Mass Moment Of Inertia 0.00752 · 10-3 kgm2
Nominal Torque 0.128 Nm
Mechanical Time Constant 1.332 ms
Friction Torque 0.01 Nm
Rotor Weight 0.18 kg
FR (Permissible radial shaft load) 110.0
FA (Permissible axial shaft load) 44.0
Electrical Data
Anchor Inductance 0.097 mH
Terminal Resistance 0.48 Ω
Voltage Constant 4.537 V/1000 min -1
Torque Constant 0.049 Nm/A
Max. Peak Current 8.422 A
Electrical Time Constant 0.202 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Temperature Rise Without Cooling 5.8 K/W

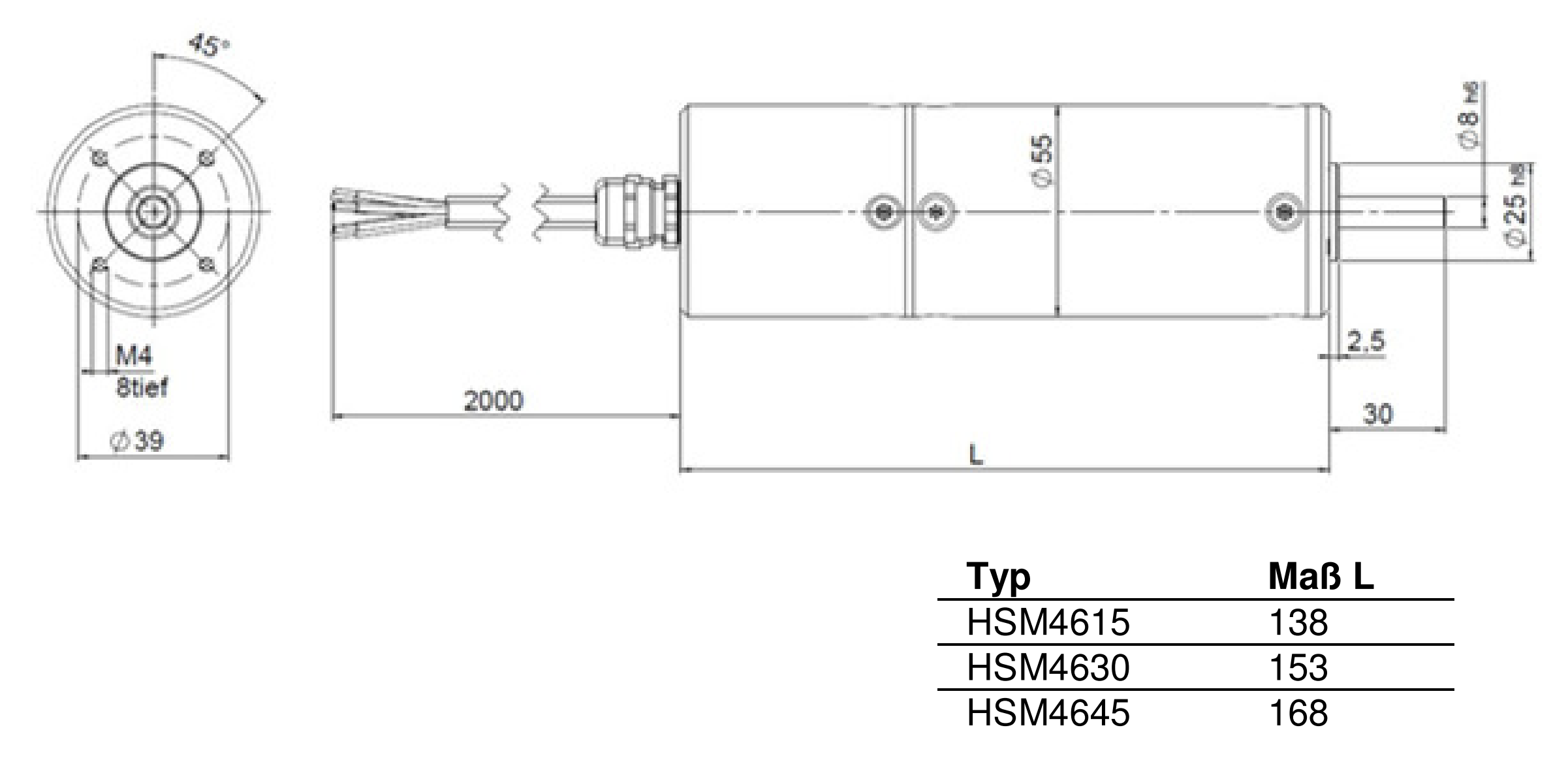

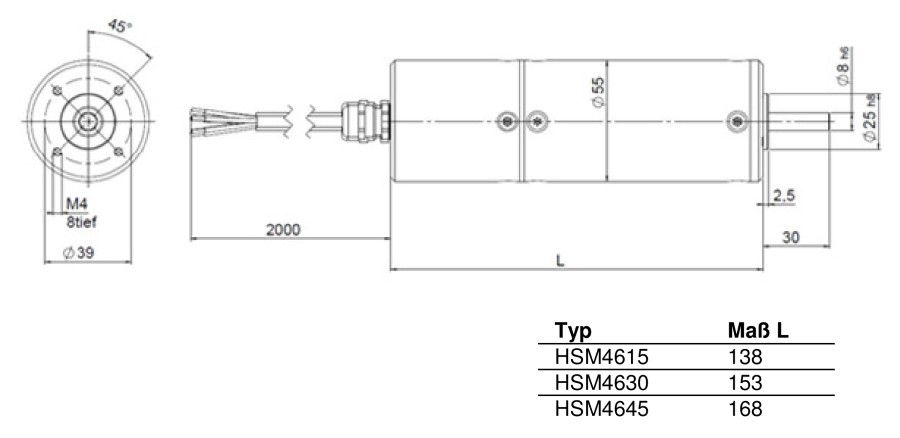

HSM4615-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 3.3 A
Nominal Power 52.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 55.0 mm
Length 138.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0025 · 10-3 kgm2
Nominal Torque 0.165 Nm
Mechanical Time Constant 0.71 ms
Friction Torque 0.025 Nm
Rotor Weight 0.095 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.91 mH
Terminal Resistance 0.95 Ω
Voltage Constant 5.23 V/1000 min -1
Torque Constant 0.0575 Nm/A
Max. Peak Current 8.8 A
Electrical Time Constant 1.11 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Temperature Rise Without Cooling 5.8 K/W

HSM4615 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 4.7 A
Nominal Power 65.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 55.0 mm
Length 138.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0025 · 10-3 kgm2
Nominal Torque 0.155 Nm
Mechanical Time Constant 1.05 ms
Friction Torque 0.025 Nm
Rotor Weight 0.095 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.89 mH
Terminal Resistance 0.63 Ω
Voltage Constant 3.75 V/1000 min -1
Torque Constant 0.0387 Nm/A
Max. Peak Current 12.7 A
Electrical Time Constant 1.41 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Temperature Rise Without Cooling 5.8 K/W

HSM4630-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 7.5 A
Nominal Power 125.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 55.0 mm
Length 153.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0044 · 10-3 kgm2
Nominal Torque 0.39 Nm
Mechanical Time Constant 0.74 ms
Friction Torque 0.035 Nm
Rotor Weight 0.131 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.46 mH
Terminal Resistance 0.348 Ω
Voltage Constant 5.21 V/1000 min -1
Torque Constant 0.0564 Nm/A
Max. Peak Current 21.0 A
Electrical Time Constant 1.32 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 11 min
Temperature Rise Without Cooling 1.16 K/W

HSM4630 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 9.3 A
Nominal Power 140.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 55.0 mm
Length 153.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0044 · 10-3 kgm2
Nominal Torque 0.34 Nm
Mechanical Time Constant 0.51 ms
Friction Torque 0.035 Nm
Rotor Weight 0.131 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.234 mH
Terminal Resistance 0.19 Ω
Voltage Constant 3.75 V/1000 min -1
Torque Constant 0.0403 Nm/A
Max. Peak Current 26.0 A
Electrical Time Constant 1.23 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 11 min
Temperature Rise Without Cooling 1.16 K/W

HSM4645-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 10.3 A
Nominal Power 175.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 55.0 mm
Length 168.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0063 · 10-3 kgm2
Nominal Torque 0.56 Nm
Mechanical Time Constant 0.5 ms
Friction Torque 0.055 Nm
Rotor Weight 0.168 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.23 mH
Terminal Resistance 0.29 Ω
Voltage Constant 5.21 V/1000 min -1
Torque Constant 0.0568 Nm/A
Max. Peak Current 32.0 A
Electrical Time Constant 1.13 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 40 min
Temperature Rise Without Cooling 1.47 K/W

HSM4645 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 14.6 A
Nominal Power 220.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 55.0 mm
Length 168.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0063 · 10-3 kgm2
Nominal Torque 0.52 Nm
Mechanical Time Constant 0.42 ms
Friction Torque 0.055 Nm
Rotor Weight 0.168 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.176 mH
Terminal Resistance 0.104 Ω
Voltage Constant 3.9 V/1000 min -1
Torque Constant 0.0394 Nm/A
Max. Peak Current 41.0 A
Electrical Time Constant 1.7 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 40 min
Temperature Rise Without Cooling 1.47 K/W

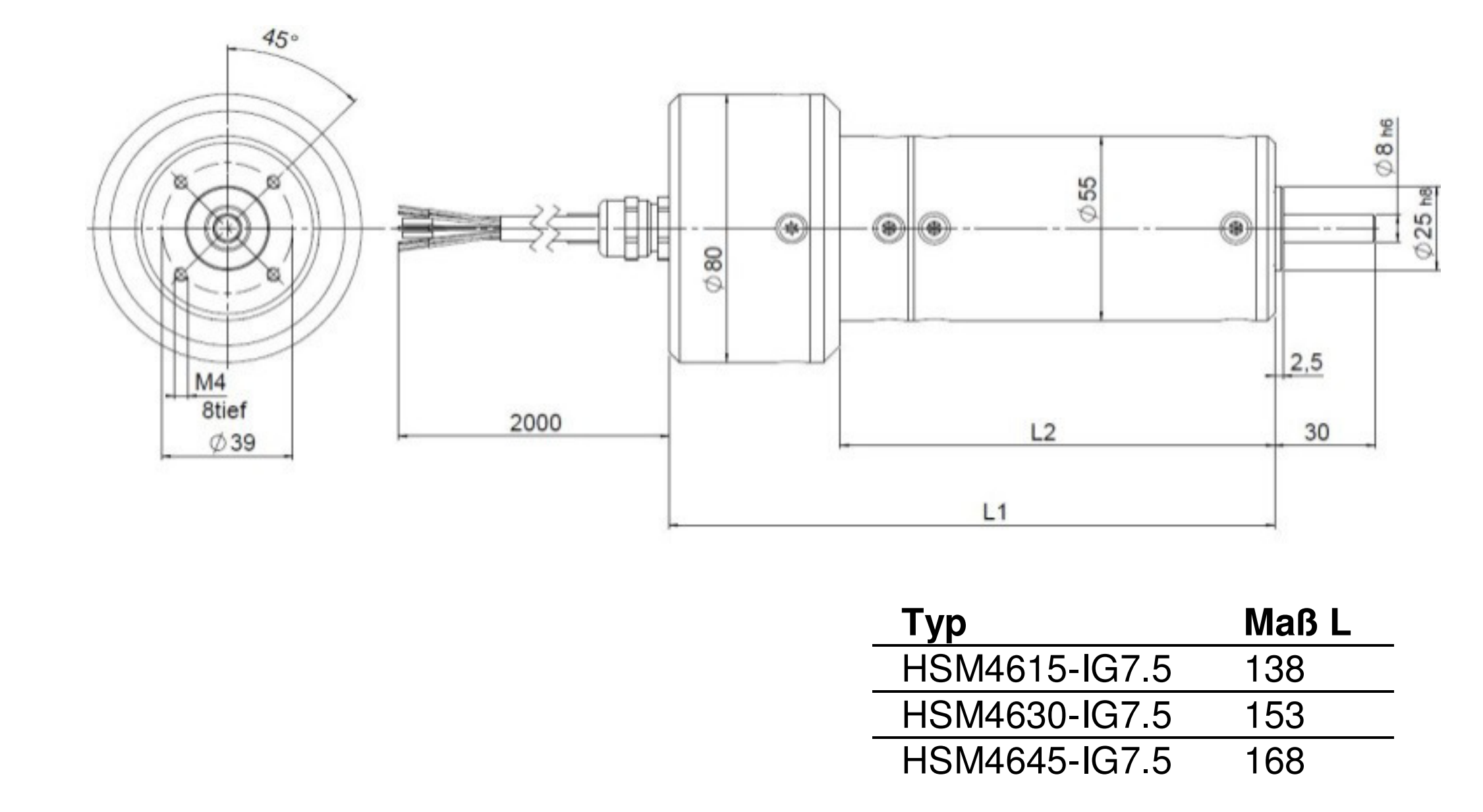

HSM4615-24-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 3.3 A
Nominal Power 52.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 138.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0025 · 10-3 kgm2
Nominal Torque 0.165 Nm
Mechanical Time Constant 0.71 ms
Friction Torque 0.025 Nm
Rotor Weight 0.098 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.91 mH
Terminal Resistance 0.95 Ω
Voltage Constant 5.23 V/1000 min -1
Torque Constant 0.0575 Nm/A
Max. Peak Current 8.8 A
Electrical Time Constant 1.11 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 40 min
Temperature Rise Without Cooling 1.47 K/W

HSM4615-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 4.7 A
Nominal Power 65.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 138.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0025 · 10-3 kgm2
Nominal Torque 0.155 Nm
Mechanical Time Constant 1.05 ms
Friction Torque 0.025 Nm
Rotor Weight 0.098 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.89 mH
Terminal Resistance 0.63 Ω
Voltage Constant 3.75 V/1000 min -1
Torque Constant 0.0387 Nm/A
Max. Peak Current 12.7 A
Electrical Time Constant 1.41 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 40 min
Temperature Rise Without Cooling 1.47 K/W

HSM4630-24-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 7.5 A
Nominal Power 125.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 153.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0044 · 10-3 kgm2
Nominal Torque 0.39 Nm
Mechanical Time Constant 0.74 ms
Friction Torque 0.035 Nm
Rotor Weight 0.135 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.46 mH
Terminal Resistance 0.348 Ω
Voltage Constant 5.21 V/1000 min -1
Torque Constant 0.0564 Nm/A
Max. Peak Current 21.0 A
Electrical Time Constant 1.32 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 11 min
Temperature Rise Without Cooling 1.16 K/W

HSM4630-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 9.3 A
Nominal Power 140.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 153.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0044 · 10-3 kgm2
Nominal Torque 0.34 Nm
Mechanical Time Constant 0.51 ms
Friction Torque 0.035 Nm
Rotor Weight 0.135 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.234 mH
Terminal Resistance 0.19 Ω
Voltage Constant 3.75 V/1000 min -1
Torque Constant 0.0403 Nm/A
Max. Peak Current 26.0 A
Electrical Time Constant 1.23 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 11 min
Temperature Rise Without Cooling 1.16 K/W

HSM4645-24-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 10.3 A
Nominal Power 175.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 168.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0063 · 10-3 kgm2
Nominal Torque 0.56 Nm
Mechanical Time Constant 0.5 ms
Friction Torque 0.055 Nm
Rotor Weight 0.171 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.23 mH
Terminal Resistance 0.29 Ω
Voltage Constant 5.21 V/1000 min -1
Torque Constant 0.0568 Nm/A
Max. Peak Current 32.0 A
Electrical Time Constant 1.13 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 40 min
Temperature Rise Without Cooling 1.47 K/W

HSM4645-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 6 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 14.6 A
Nominal Power 220.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 168.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0063 · 10-3 kgm2
Nominal Torque 0.52 Nm
Mechanical Time Constant 0.42 ms
Friction Torque 0.055 Nm
Rotor Weight 0.171 kg
FR (Permissible radial shaft load) 100.0
FA (Permissible axial shaft load) 40.0
Electrical Data
Anchor Inductance 0.176 mH
Terminal Resistance 0.104 Ω
Voltage Constant 3.9 V/1000 min -1
Torque Constant 0.0394 Nm/A
Max. Peak Current 41.0 A
Electrical Time Constant 1.7 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 40 min
Temperature Rise Without Cooling 1.47 K/W

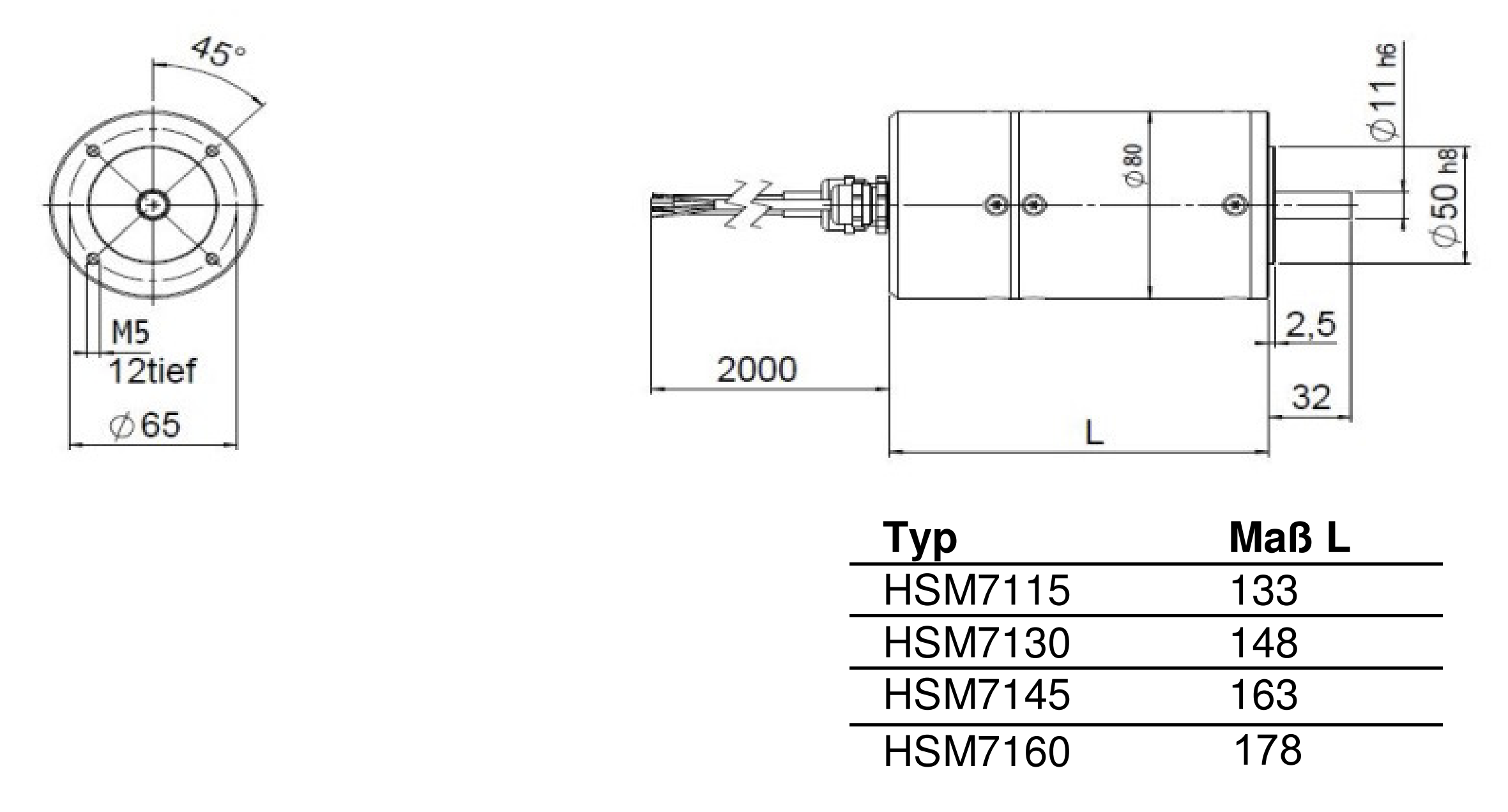

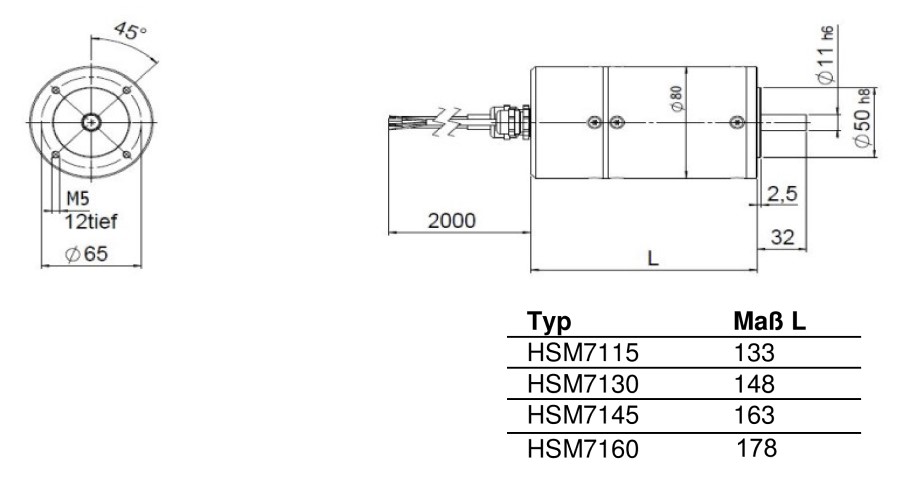

HSM7115-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 9.6 A
Nominal Power 140.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 133.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0752 · 10-3 kgm2
Nominal Torque 0.44 Nm
Mechanical Time Constant 4.4 ms
Friction Torque 0.045 Nm
Rotor Weight 0.37 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.085 mH
Terminal Resistance 0.156 Ω
Voltage Constant 4.8 V/1000 min -1
Torque Constant 0.0504 Nm/A
Max. Peak Current 27.0 A
Electrical Time Constant 0.54 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 40 min
Temperature Rise Without Cooling 1.47 K/W

HSM7115 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 11.5 A
Nominal Power 180.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 133.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0752 · 10-3 kgm2
Nominal Torque 0.43 Nm
Mechanical Time Constant 4.2 ms
Friction Torque 0.045 Nm
Rotor Weight 0.37 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.07 mH
Terminal Resistance 0.1 Ω
Voltage Constant 3.84 V/1000 min -1
Torque Constant 0.0414 Nm/A
Max. Peak Current 32.3 A
Electrical Time Constant 0.7 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 40 min
Temperature Rise Without Cooling 1.47 K/W

HSM7130-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 16.3 A
Nominal Power 270.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 148.0 mm
Mechanical Data
Mass Moment Of Inertia 0.1463 · 10-3 kgm2
Nominal Torque 0.87 Nm
Mechanical Time Constant 4.08 ms
Friction Torque 0.035 Nm
Rotor Weight 0.59 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.096 mH
Terminal Resistance 0.085 Ω
Voltage Constant 5.15 V/1000 min -1
Torque Constant 0.0541 Nm/A
Max. Peak Current 46.0 A
Electrical Time Constant 1.17 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

HSM7130 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 22.0 A
Nominal Power 360.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 148.0 mm
Mechanical Data
Mass Moment Of Inertia 0.1463 · 10-3 kgm2
Nominal Torque 0.85 Nm
Mechanical Time Constant 3.34 ms
Friction Torque 0.07 Nm
Rotor Weight 0.59 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.053 mH
Terminal Resistance 0.043 Ω
Voltage Constant 3.87 V/1000 min -1
Torque Constant 0.0434 Nm/A
Max. Peak Current 60.0 A
Electrical Time Constant 1.23 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

HSM7145-24 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 25.3 A
Nominal Power 460.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 163.0 mm
Mechanical Data
Mass Moment Of Inertia 0.2174 · 10-3 kgm2
Nominal Torque 1.45 Nm
Mechanical Time Constant 2.6 ms
Friction Torque 0.12 Nm
Rotor Weight 0.82 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.06 mH
Terminal Resistance 0.045 Ω
Voltage Constant 5.8 V/1000 min -1
Torque Constant 0.0648 Nm/A
Max. Peak Current 69.0 A
Electrical Time Constant 1.33 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

HSM7145 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 37.0 A
Nominal Power 595.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 163.0 mm
Mechanical Data
Mass Moment Of Inertia 0.2174 · 10-3 kgm2
Nominal Torque 1.42 Nm
Mechanical Time Constant 4.4 ms
Friction Torque 0.12 Nm
Rotor Weight 0.82 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.02 mH
Terminal Resistance 0.036 Ω
Voltage Constant 4.05 V/1000 min -1
Torque Constant 0.0425 Nm/A
Max. Peak Current 100.0 A
Electrical Time Constant 0.56 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

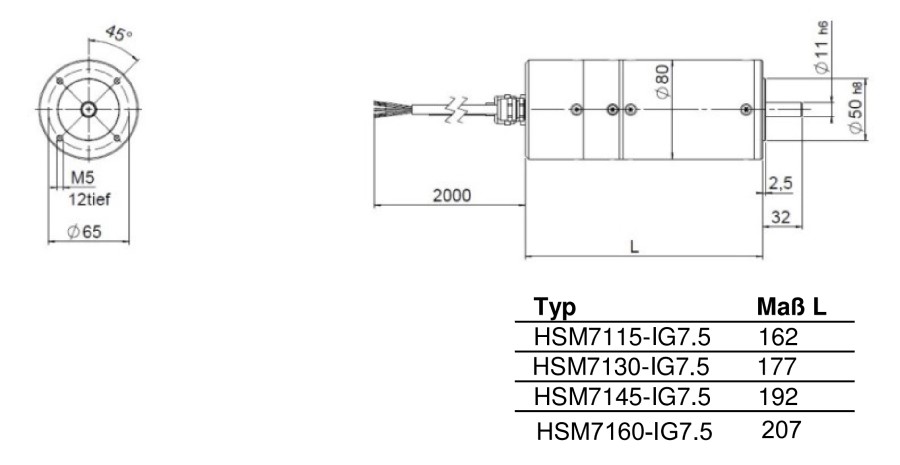

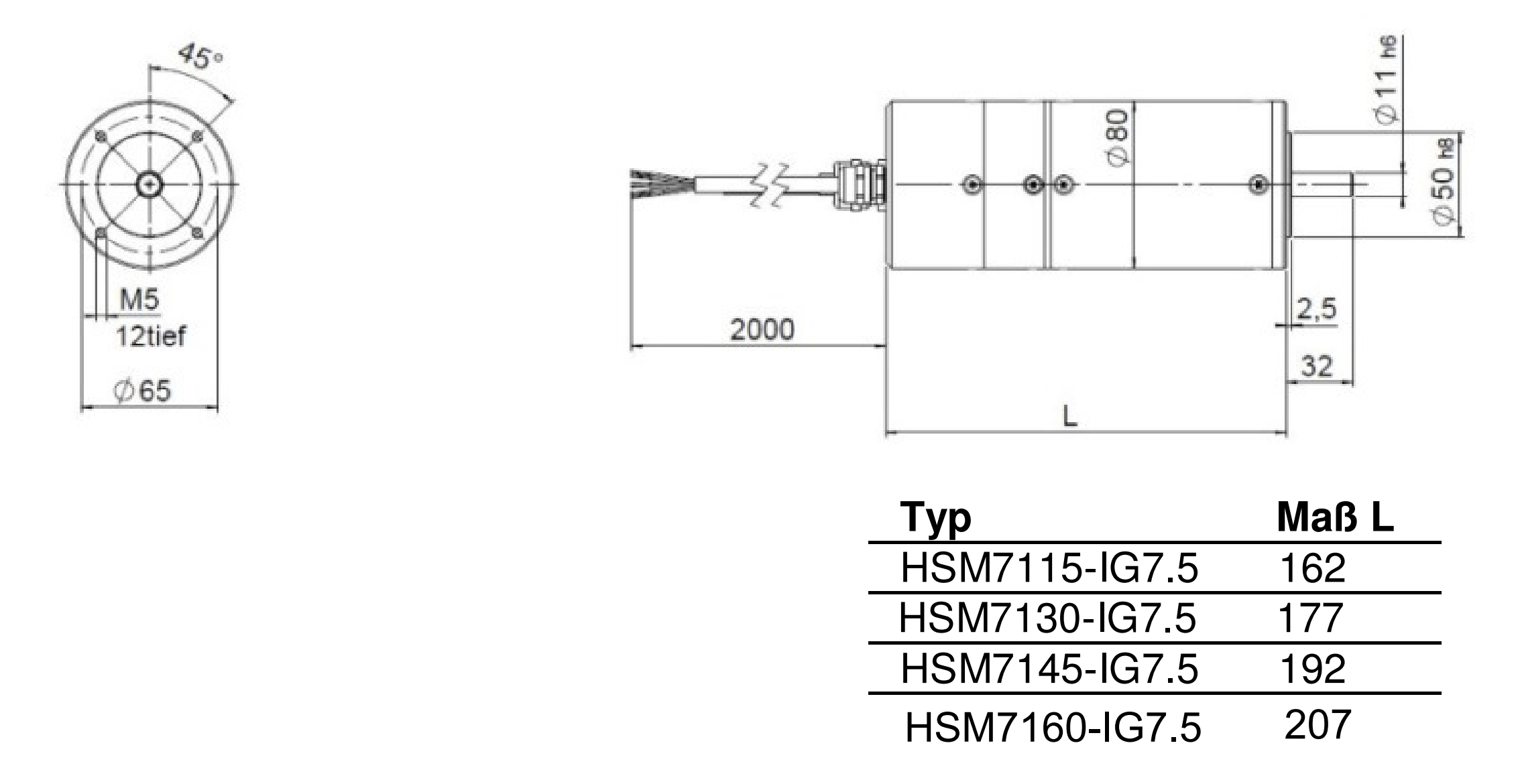

HSM7115-24-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 9.6 A
Nominal Power 140.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 162.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0719 · 10-3 kgm2
Nominal Torque 0.44 Nm
Mechanical Time Constant 4.4 ms
Friction Torque 0.045 Nm
Rotor Weight 0.38 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.085 mH
Terminal Resistance 0.156 Ω
Voltage Constant 4.8 V/1000 min -1
Torque Constant 0.0504 Nm/A
Max. Peak Current 27.0 A
Electrical Time Constant 0.54 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

HSM7115-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 11.5 A
Nominal Power 180.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 162.0 mm
Mechanical Data
Mass Moment Of Inertia 0.0719 · 10-3 kgm2
Nominal Torque 0.43 Nm
Mechanical Time Constant 4.2 ms
Friction Torque 0.045 Nm
Rotor Weight 0.38 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.07 mH
Terminal Resistance 0.1 Ω
Voltage Constant 3.84 V/1000 min -1
Torque Constant 0.0414 Nm/A
Max. Peak Current 32.3 A
Electrical Time Constant 0.7 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

HSM7130-24-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 16.3 A
Nominal Power 270.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 177.0 mm
Mechanical Data
Mass Moment Of Inertia 0.1463 · 10-3 kgm2
Nominal Torque 0.87 Nm
Mechanical Time Constant 4.08 ms
Friction Torque 0.035 Nm
Rotor Weight 0.6 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.096 mH
Terminal Resistance 0.085 Ω
Voltage Constant 5.15 V/1000 min -1
Torque Constant 0.0541 Nm/A
Max. Peak Current 46.0 A
Electrical Time Constant 1.17 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

HSM7130-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 22.0 A
Nominal Power 360.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 177.0 mm
Mechanical Data
Mass Moment Of Inertia 0.1463 · 10-3 kgm2
Nominal Torque 0.85 Nm
Mechanical Time Constant 3.34 ms
Friction Torque 0.07 Nm
Rotor Weight 0.6 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.053 mH
Terminal Resistance 0.043 Ω
Voltage Constant 3.87 V/1000 min -1
Torque Constant 0.0434 Nm/A
Max. Peak Current 60.0 A
Electrical Time Constant 1.23 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

HSM7145-24-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 3000.0 min-1
Nominal Voltage 24 V
Rated Current 25.3 A
Nominal Power 460.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 192.0 mm
Mechanical Data
Mass Moment Of Inertia 0.22192 · 10-3 kgm2
Nominal Torque 1.45 Nm
Mechanical Time Constant 2.6 ms
Friction Torque 0.12 Nm
Rotor Weight 0.82 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.06 mH
Terminal Resistance 0.045 Ω
Voltage Constant 5.8 V/1000 min -1
Torque Constant 0.0648 Nm/A
Max. Peak Current 69.0 A
Electrical Time Constant 1.33 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W

HSM7145-IG7.5 - Motor Design

The stator is a 3-phase toothed coil winding, the rotor consists of 12 high-quality neodymium iron drilling magnets. The HSM drives are modularly expandable with various gears, holding brakes and encoder systems.

Information

Tolerances according to VDE 0530. ± 10% for tolerances not specified according to VDE 0530. All values are only valid for use in the temperature range from 0 to 20 °C and must not be exceeded, even for a short time, as otherwise there is a risk of magnetic weakening. All data with reference to our disclaimer.
General Data
Rated Speed 4000.0 min-1
Nominal Voltage 24 V
Rated Current 37.0 A
Nominal Power 595.0 W
Operating Mode S1
Degree Of Protection IP54
Direction Of Rotation reversibel
Connection Type Mantelleitung
Type IM B14
Diameter 80.0 mm
Length 192.0 mm
Mechanical Data
Mass Moment Of Inertia 0.22192 · 10-3 kgm2
Nominal Torque 1.42 Nm
Mechanical Time Constant 4.4 ms
Friction Torque 0.12 Nm
Rotor Weight 0.82 kg
FR (Permissible radial shaft load) 230.0
FA (Permissible axial shaft load) 90.0
Electrical Data
Anchor Inductance 0.02 mH
Terminal Resistance 0.036 Ω
Voltage Constant 4.05 V/1000 min -1
Torque Constant 0.0425 Nm/A
Max. Peak Current 100.0 A
Electrical Time Constant 0.56 ms
Thermal Data
Max. Ambient Temperature 20.0 °C
Insulation Class F
Thermal Time Constant 60 min
Temperature Rise Without Cooling 0.89 K/W
Loading...
